Glulam Beam Connectors
Welded Top Flange Hangers
KHW / SW / SWH
Reference Series: WP
SW – Light-duty hanger.
SWH – Medium-duty hanger.
KHW – Heavy-duty hanger installs with NA20D nails for higher load capacities.
SWH – Medium-duty hanger.
KHW – Heavy-duty hanger installs with NA20D nails for higher load capacities.
Materials:
SW top flange – 12 gauge; stirrup – 12 gauge;
SWH top flange – 7 gauge; stirrup – 12 gauge;
KHW top flange – 3 gauge; stirrup – 10 gauge
SW top flange – 12 gauge; stirrup – 12 gauge;
SWH top flange – 7 gauge; stirrup – 12 gauge;
KHW top flange – 3 gauge; stirrup – 10 gauge
Finish: USP primer
Code Reports:
View Code Report Table
Technical Bulletins
Installation
- Use all specified fasteners.
- NA20D nails are supplied with KHW hangers.
- KHW models are not recommended for use with LVL, PSL, or LSL headers.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934
SW210 Welded Top Flange Hanger
Load Table
Joist Sizes: 2 x 4 to 4 x 6
Joist Sizes: 4 x 8 to 8 x 16
Glulam Sizes

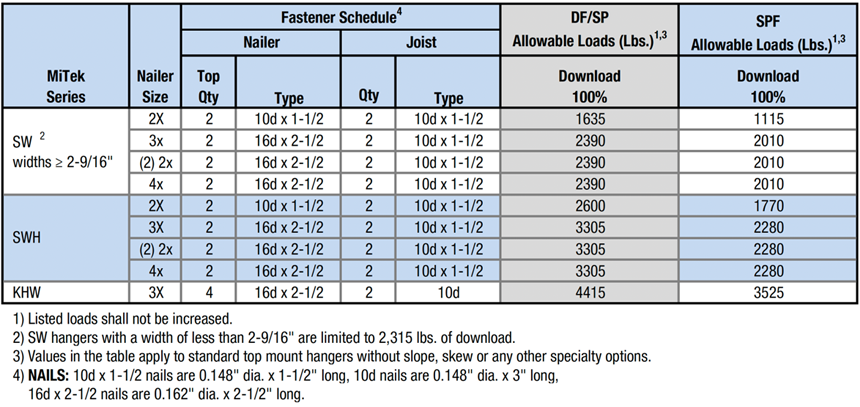

Option Details:
Code Report Table
3-View Product Drawings
| MiTek Stock # | Download or View Files | |||
|---|---|---|---|---|
| KHW26 | DWG | DXF | View Image | |
| KHW416 | DWG | DXF | View Image | |
| KHW616 | DWG | DXF | View Image | |
| KHW66 | DWG | DXF | View Image | |
| KHW68 | DWG | DXF | View Image | |
| KHW810 | DWG | DXF | View Image | |
| KHW816 | DWG | DXF | View Image | |
| KHW86 | DWG | DXF | View Image | |
| KHW88 | DWG | DXF | View Image | |
| SW214 | DWG | DXF | View Image | |
| SW216 | DWG | DXF | View Image | |
| SW310 | DWG | DXF | View Image | |
| SW36 | DWG | DXF | View Image | |
| SW38 | DWG | DXF | View Image | |
| SW410 | DWG | DXF | View Image | |
| SW46 | DWG | DXF | View Image | |
| SW48 | DWG | DXF | View Image | |
| SWH216-2 | DWG | DXF | View Image | |
| SWH312 | DWG | DXF | View Image | |
| SWH314 | DWG | DXF | View Image | |
| SWH316 | DWG | DXF | View Image | |
Application Drawings
| MiTek Stock # | Download or View Files | ||||
|---|---|---|---|---|---|
| KHW26 | Typical | DWG | DXF | View Image | |
| KHW416 | Typical | DWG | DXF | View Image | |
| KHW616 | Typical | DWG | DXF | View Image | |
| KHW66 | Typical | DWG | DXF | View Image | |
| KHW68 | Typical | DWG | DXF | View Image | |
| KHW810 | Typical | DWG | DXF | View Image | |
| KHW816 | Typical | DWG | DXF | View Image | |
| KHW86 | Typical | DWG | DXF | View Image | |
| KHW88 | Typical | DWG | DXF | View Image | |
| SW214 | Typical | DWG | DXF | View Image | |
| SW216 | Typical | DWG | DXF | View Image | |
| SW310 | Typical | DWG | DXF | View Image | |
| SW36 | Typical | DWG | DXF | View Image | |
| SW38 | Typical | DWG | DXF | View Image | |
| SW410 | Typical | DWG | DXF | View Image | |
| SW46 | Typical | DWG | DXF | View Image | |
| SW48 | Typical | DWG | DXF | View Image | |
| SWH216-2 | Typical | DWG | DXF | View Image | |
| SWH312 | Typical | DWG | DXF | View Image | |
| SWH314 | Typical | DWG | DXF | View Image | |
| SWH316 | Typical | DWG | DXF | View Image | |
